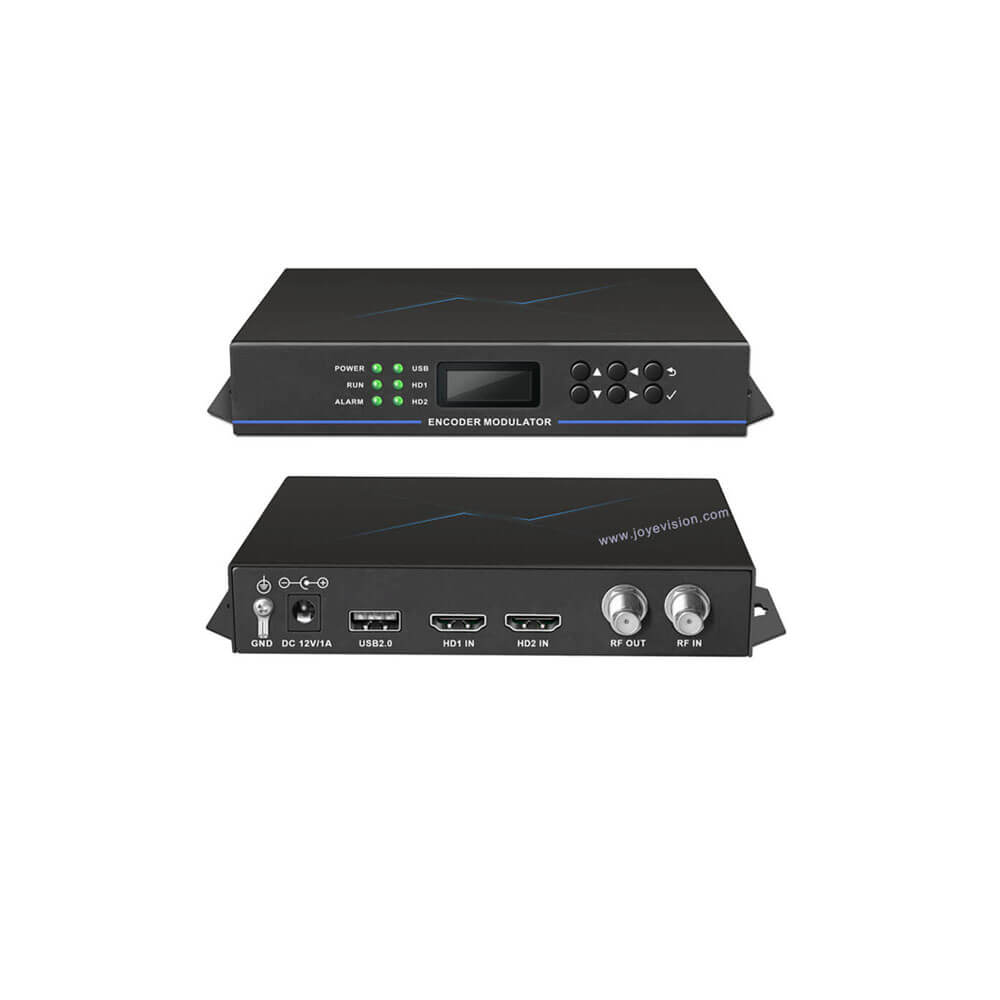

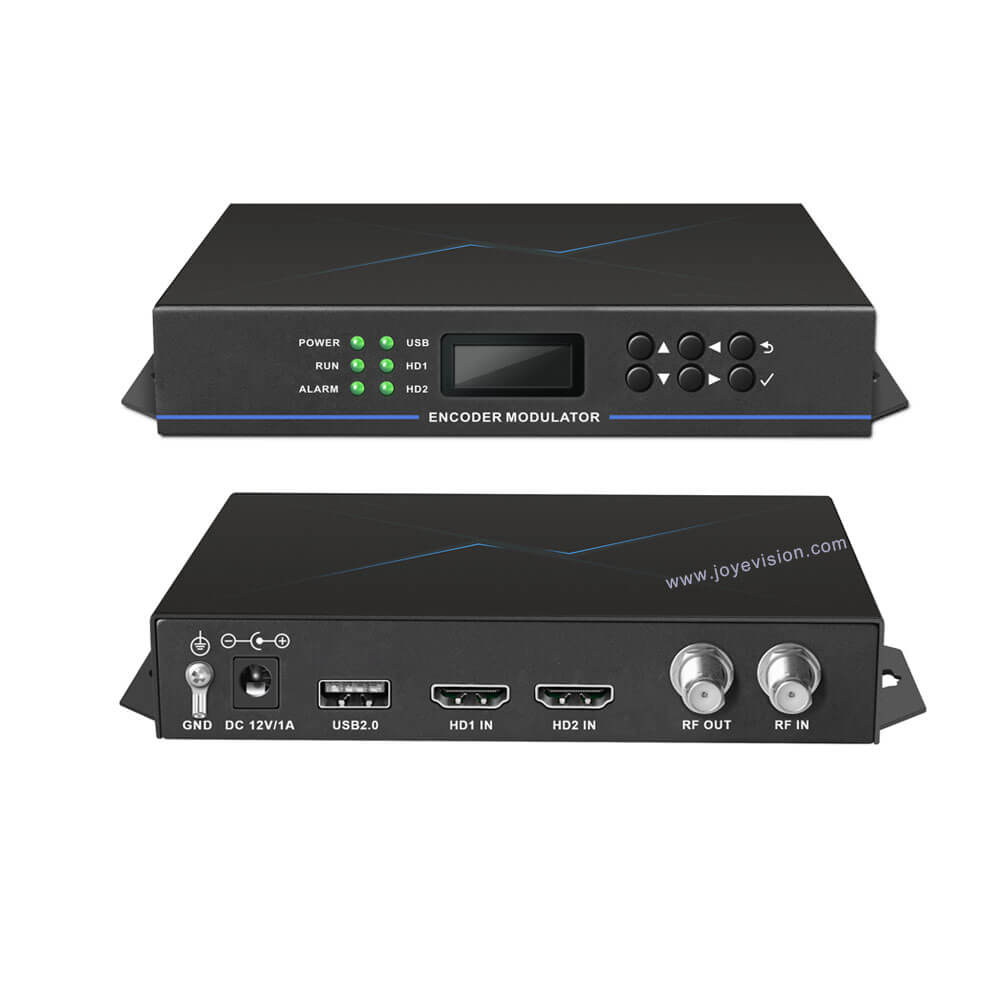

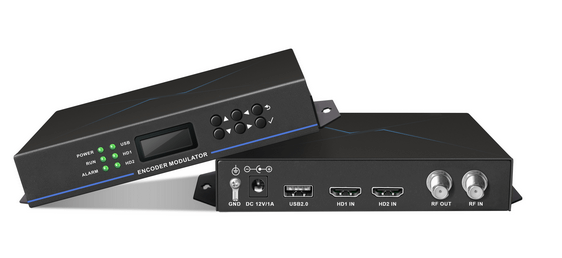

Mini HDMI Encoder Modulator

The compact size mini hdmi encoder modulator is our latest version which integrated functions of video compression encoding and modulation,it supports the 2*HDMI input and 1* USB input signal in, after the multiplexing and modulated with DVB-T/DVB-C/ ISDB-T RF output. It adopts with a RF loop input port which is convenient for users to mix multiple outputs or mix with antenna signals.

Features

◈ Support 2 HD signals and 1 USB video signal input
◈ Support Mpeg4/H.264 Encoding
◈ Support TS re-multiplexing
◈ Support dvb-t/dvb-c/isdb-t rf output
◈ Support 1* RF loop in and mixed into 1 RF output
◈ Agile frequency,easy to set within the frequency range
◈ Web UI for configuration,or buttons and LCD on front panel



Specification

Input 2* HDMI ports, 1 USB 2.0
Output 1* RF out (DVB-C/DVB-T/ISDB-T for options)
HDVideo EncodingStandardMpeg4/H.264
  Resolution1920*1080 60P,1920*1080 50P,1920*1080 60i,1920*1080 50i,1280*720 60P,1280*720 50P
  Bitrate1-19.5Mbps
 Audio EncodingStandardMPEG 1 Layer II
  Sampling rate48KHz/44.1 KHz/32 KHz
  Bitrate384Kbps
USBInterface StandardUSB2.0
 Video formatTS, MPG
DVB-CStandardJ.83A  Annex A
 Constellation16QAM,32QAM,64QAM,128QAM,256QAM
 MER≥40dB
 StandardJ.83B  Annex B
 Constellation64QAM,256QAM
 MER≥40dB
DVB-TStandardDVB-T COFDM
 Bandwidth6/7/8MHz
 Constellation4QAM, 16QAM, 64QAM
 Code Rate1/2, 2/3, 3/4, 5/6, 7/8
 Guard Interval1/32, 1/16, 1/8, 1/4
 Transmit Mode2K,4K,8K
 MER≥40dB
 RF Frequency Range50-999.999MHz, Min. step of 1KHz
 Output Level≥100dBuV(range 0-31.5dB,step of 0.5dB)
 Out-of-band Suppression≥60dB
ISDB-TStandardARIB STD-B31
 Bandwidth6MHz
 ConstellationDQPSK, QPSK, 16QAM, 64QAM
 Guard Interval1/32, 1/16, 1/8, 1/4
 Transmit Mode2K, 4K, 8K
 MER≥42dB
 RF Frequency Range50-999.999MHz, Min. step of 1KHz
 Output Level≥100dBuV(range 0-20dB,step of 0.5dB)
 Out-of-band Suppression≥60dB
MiscellaneousDimension176*123*28mm
 PowerDC 12V
